    What Is Coronary Artery Disease?

    Coronary artery disease (CAD) happens when plaque builds up inside the arteries that supply blood to your heart. Think of it like a clogged pipe — the buildup narrows the opening, making it harder for blood to flow through.

    When your heart doesn't get enough blood, you might feel chest pain (called angina), shortness of breath, or unusual fatigue. These are signs that your heart is working too hard and not getting enough oxygen.

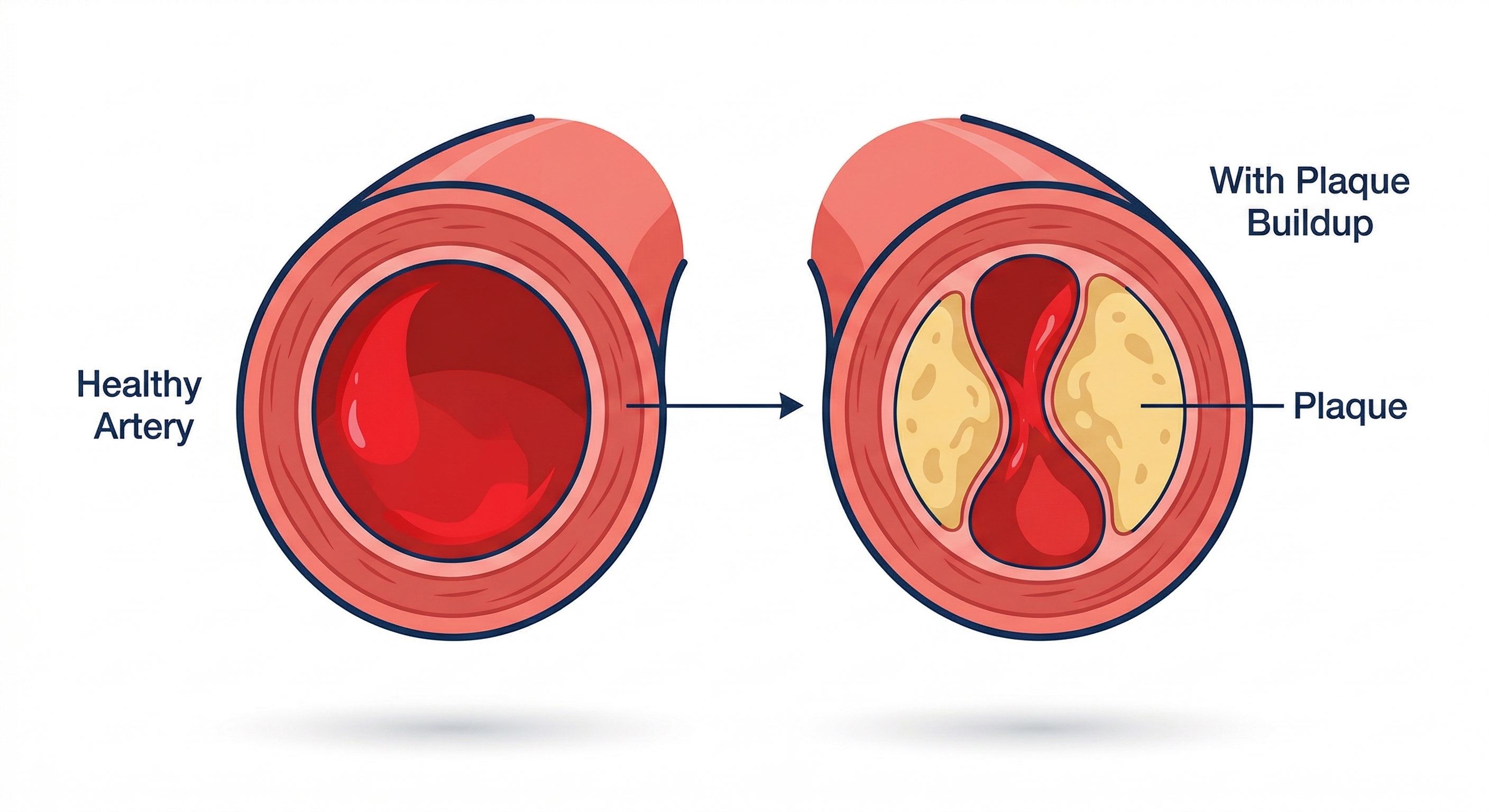

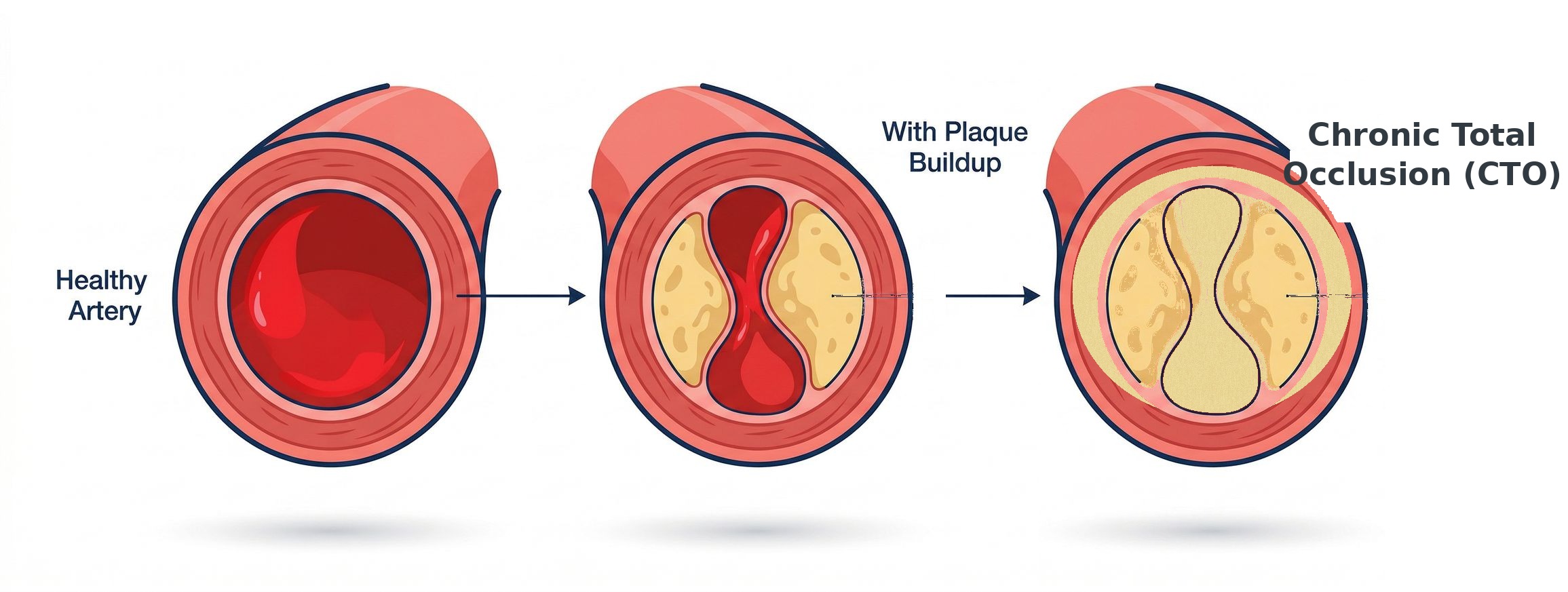

    Healthy artery vs artery with plaque buildupHealthy Artery vs. Plaque Buildup

    The good news: there are treatments that can help restore blood flow to your heart and relieve your symptoms.

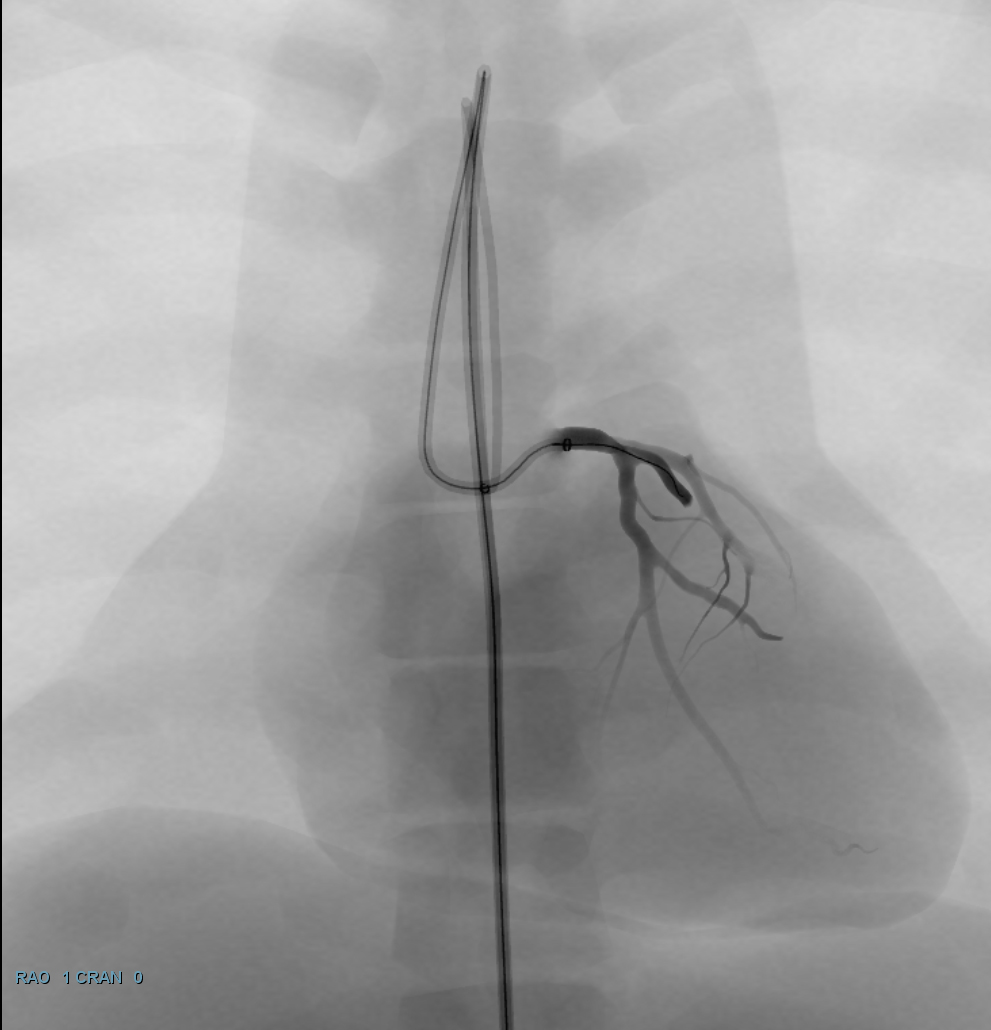

    What Is a Chronic Total Occlusion (CTO)?

    A CTO is an artery that is 100% blocked for at least 3 months. "Chronic" means it's been there a long time, and "total occlusion" means completely blocked — no blood flows through it at all.

    When this happens, your body is smart: it creates tiny detour blood vessels (called collaterals) around the blockage. But these detours aren't enough to give your heart all the blood it needs.

    Many patients are told "nothing can be done" about a CTO. But that's not true anymore. Advanced techniques and specialized training now make it possible to open these blocked arteries safely.

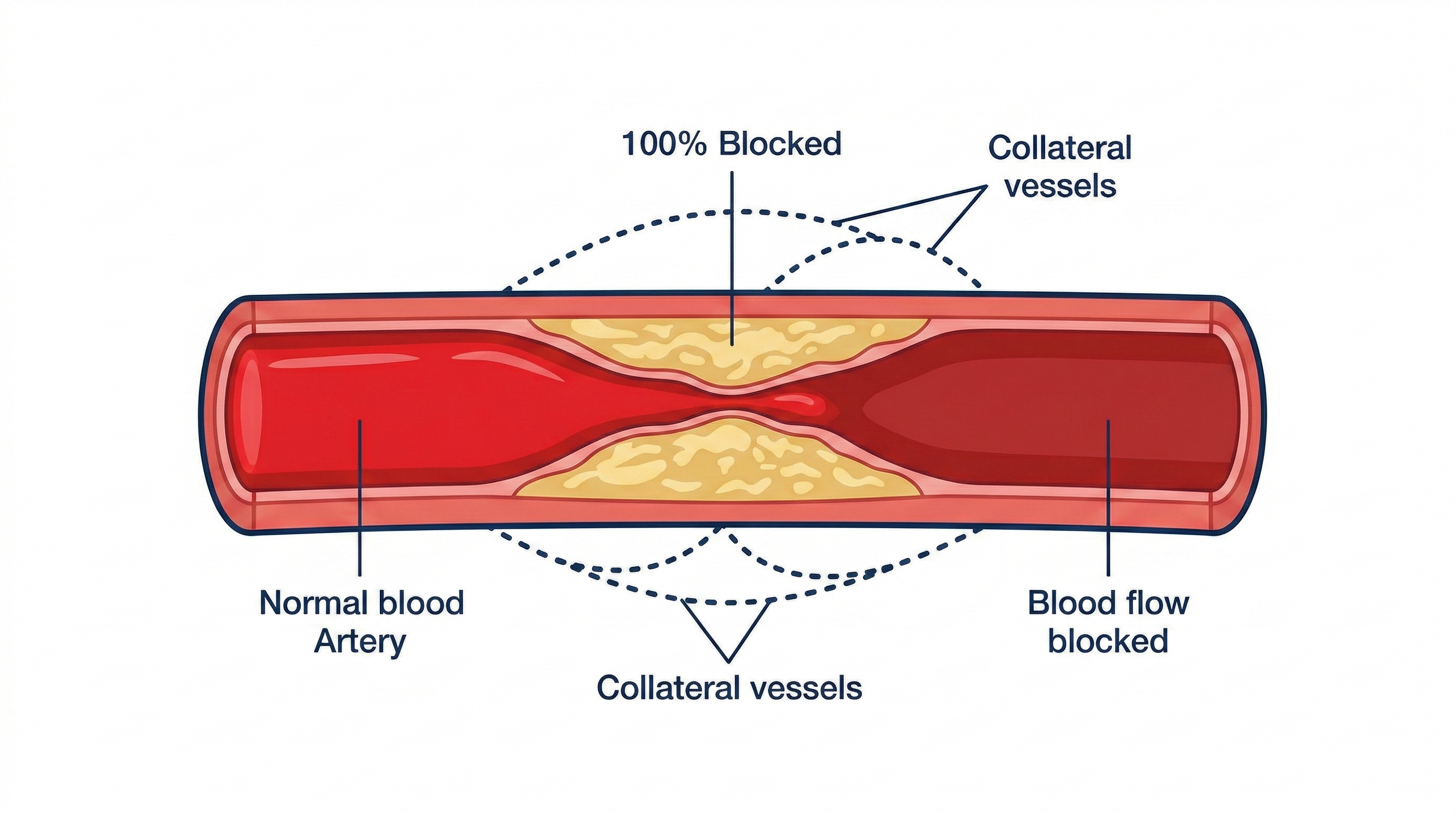

    Chronic total occlusion — 100% blocked artery with collateral vesselsChronic Total Occlusion (100% Blocked)

    How Is Coronary Disease Diagnosed?

    Diagnosing coronary artery disease starts with your doctor listening to your symptoms and reviewing your medical history. Common symptoms include chest pain or pressure (angina), shortness of breath, and unusual fatigue, especially with physical activity.

    Your doctor may order several tests to evaluate your heart:

    Non-Invasive Tests

    Electrocardiogram (ECG): A quick test that records your heart's electrical activity. It can show if your heart has been damaged by reduced blood flow.

    Echocardiogram: An ultrasound of your heart that shows how well it pumps and whether any areas of the heart muscle are weak (which could mean poor blood supply).

    CT Coronary Angiography (CTA): A specialized scan that creates detailed 3D images of your heart's arteries. Beyond simply detecting blockages, CT is particularly valuable for planning CTO procedures: it shows the exact length and shape of the blockage, the amount of calcium present, and helps your doctor choose the best approach and equipment before the procedure even begins.

    Stress Testing & Heart Muscle Viability

    Before opening a completely blocked artery, your doctor needs to answer two important questions: (1) Is the blockage actually causing reduced blood flow to your heart? and (2) Is the heart muscle in that area still alive and capable of recovering?

    Not every blocked artery causes symptoms or needs treatment. Some blockages develop slowly and the heart builds alternative blood supply routes (collaterals). Stress tests help determine whether treatment will truly benefit you.

    Cardiac MRI (CMR): The most comprehensive test for CTO patients. It evaluates heart function, blood flow under stress, and most importantly, whether the heart muscle is still viable (alive) or has become scar tissue. This is done using a special contrast agent (gadolinium). If the scar involves less than 50% of the wall thickness, recovery after opening the artery is expected.

    PET Scan: A nuclear imaging test that measures both blood flow and metabolic activity of the heart muscle. When an area shows reduced blood flow but preserved metabolic activity (called a "mismatch"), it means the muscle is hibernating and will likely recover after revascularization. PET provides the highest accuracy for viability assessment.

    Nuclear Stress Test (SPECT): The most widely available stress imaging test. While less precise than CMR or PET, it effectively detects reduced blood flow and provides a good initial assessment.

    Coronary Angiography (Cardiac Catheterization)

    If non-invasive tests confirm significant disease, your doctor may recommend a coronary angiogram. A thin, flexible tube (catheter) is inserted through a small puncture in your wrist or groin and guided to your heart. Contrast dye is injected so the arteries can be seen on X-ray. This is the gold standard for identifying the exact location and severity of blockages, and it is often the moment when a CTO is first identified.

    How CTO PCI Works

    CTO PCI is a specialized procedure to reopen a completely blocked artery. Here's the step-by-step process:

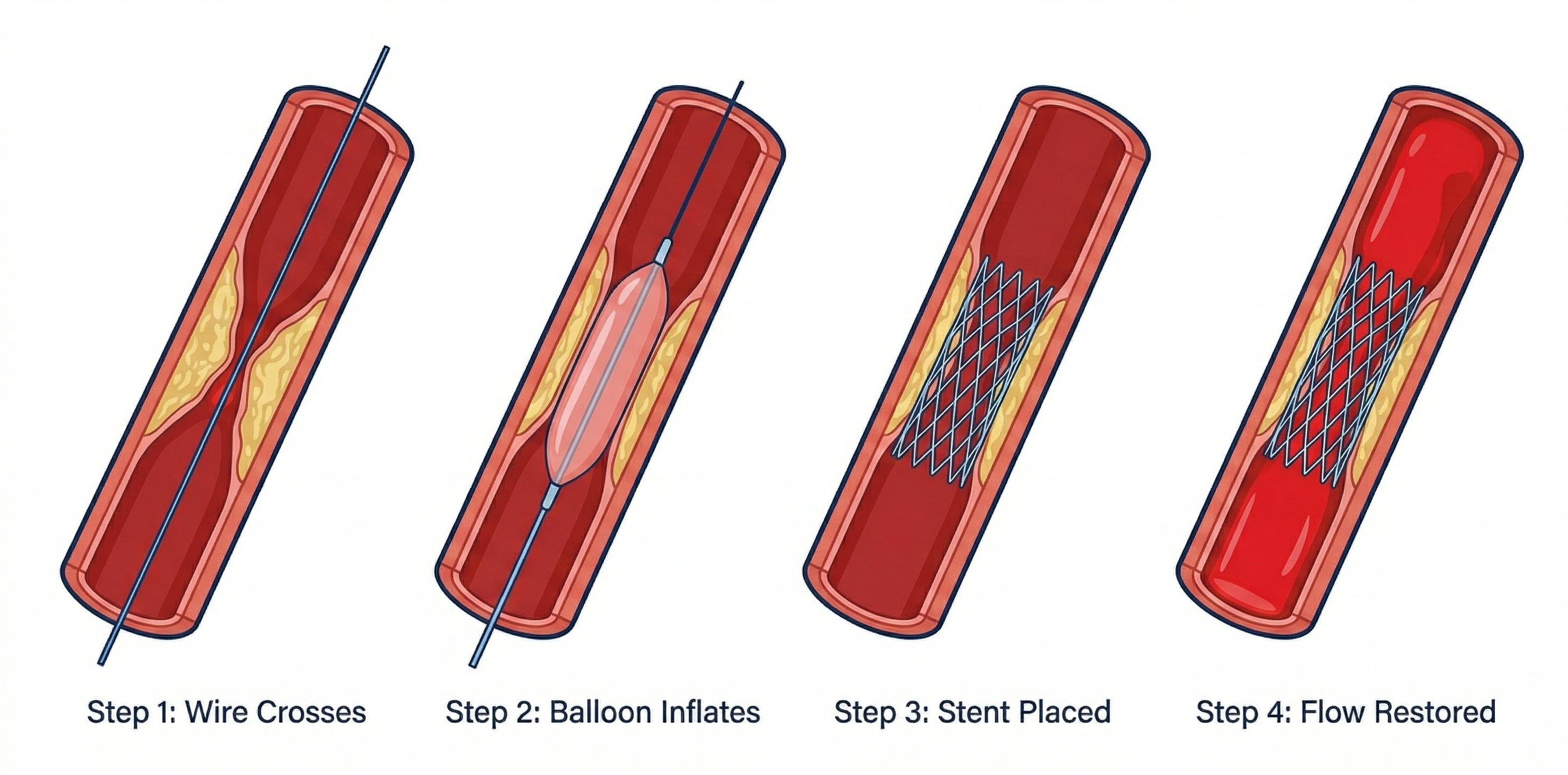

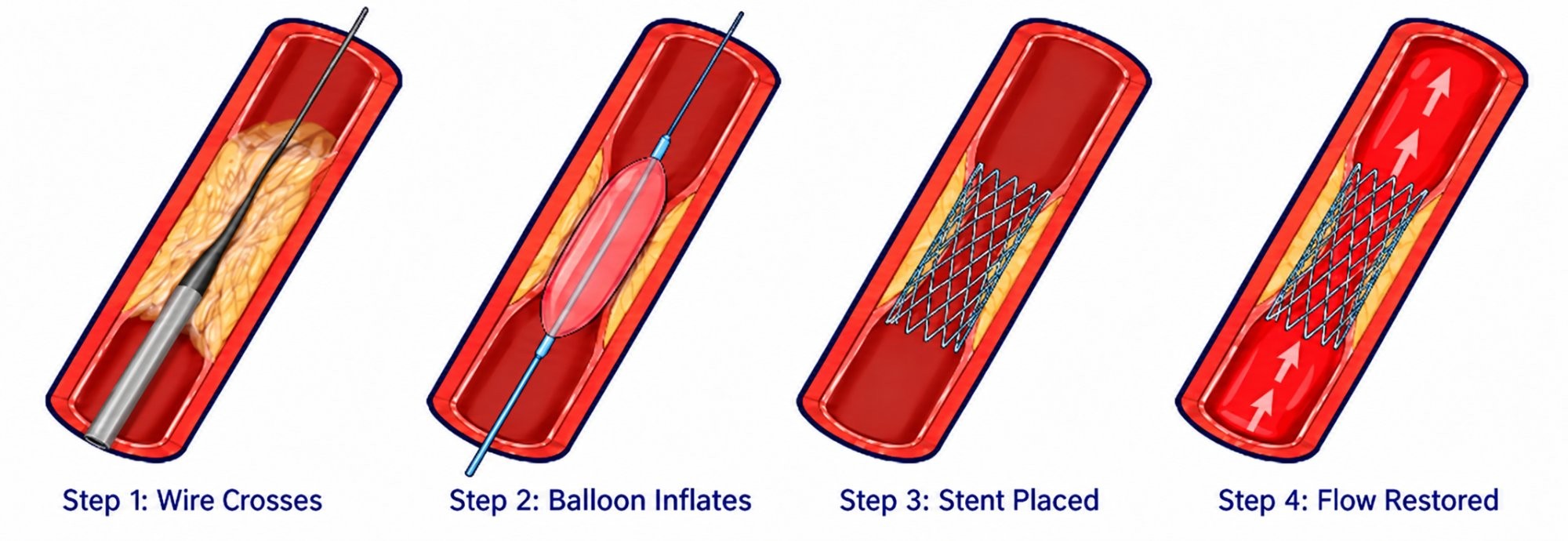

    CTO PCI 4-step process: wire crossing, balloon inflation, stent placement, flow restoration

    Wire crossing → Balloon dilation → Stent deployment → Blood flow restored

    Watch: Microcatheter crossing a CTO lesion

    No open surgery needed. The procedure is done through a small puncture in your wrist (or groin). You'll usually stay in the hospital for 1-2 nights. Recovery is quick. Most patients go home the next day and resume normal activities within a week.

    The CTO PCI Procedure: What to Expect

    Risks vs. Benefits

    Like any medical procedure, CTO PCI has both risks and benefits. The main benefits include relief from chest pain and shortness of breath, improved exercise capacity, reduced need for multiple medications, and in many cases, an alternative to open-heart bypass surgery.

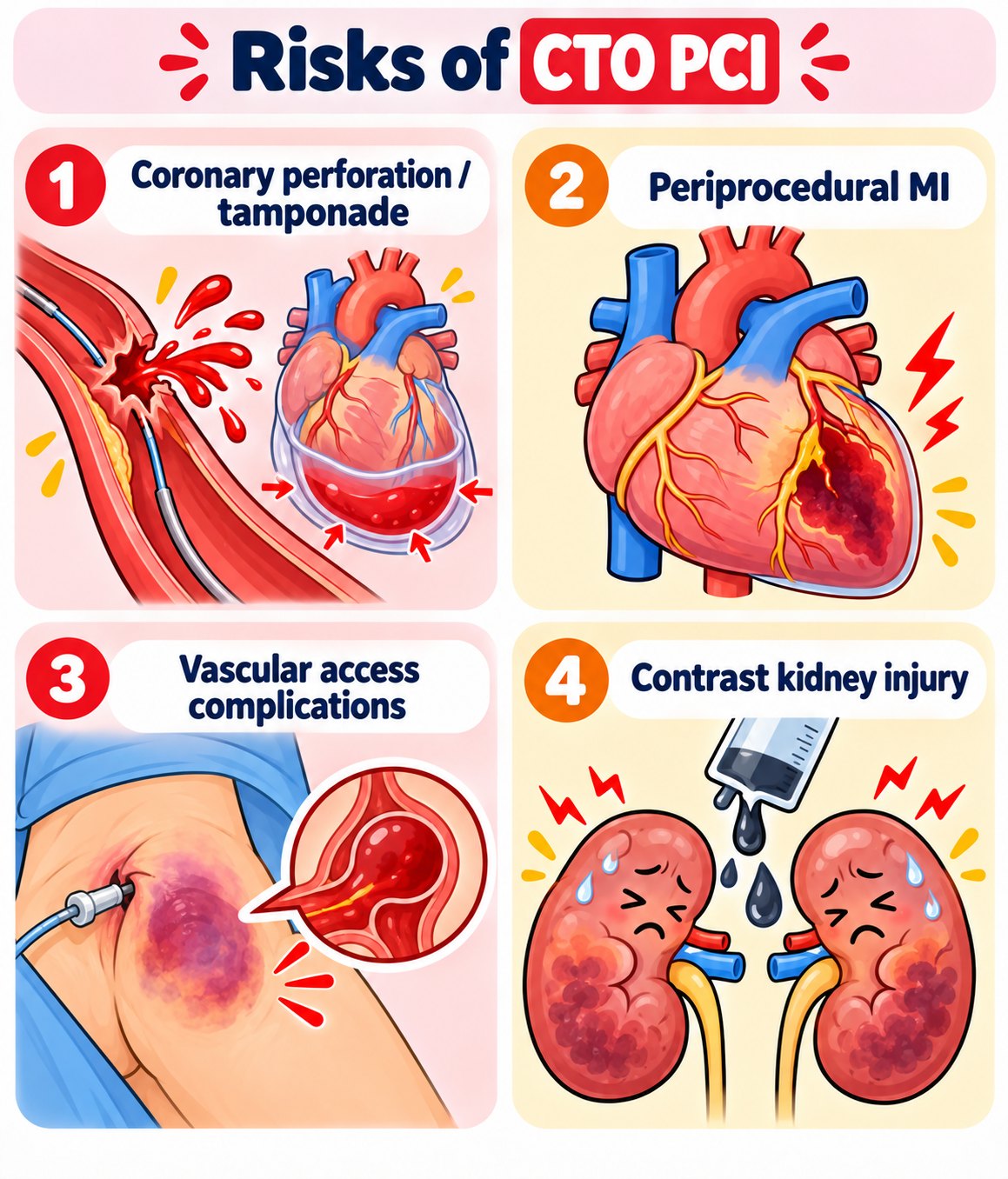

    The risks are low in experienced hands but include bleeding at the access site, allergic reaction to contrast dye, kidney stress from contrast, damage to the artery, and in rare cases (less than 1%), heart attack or need for emergency surgery. Your doctor will discuss your individual risk profile before the procedure.

    Dual and Triple Arterial Access

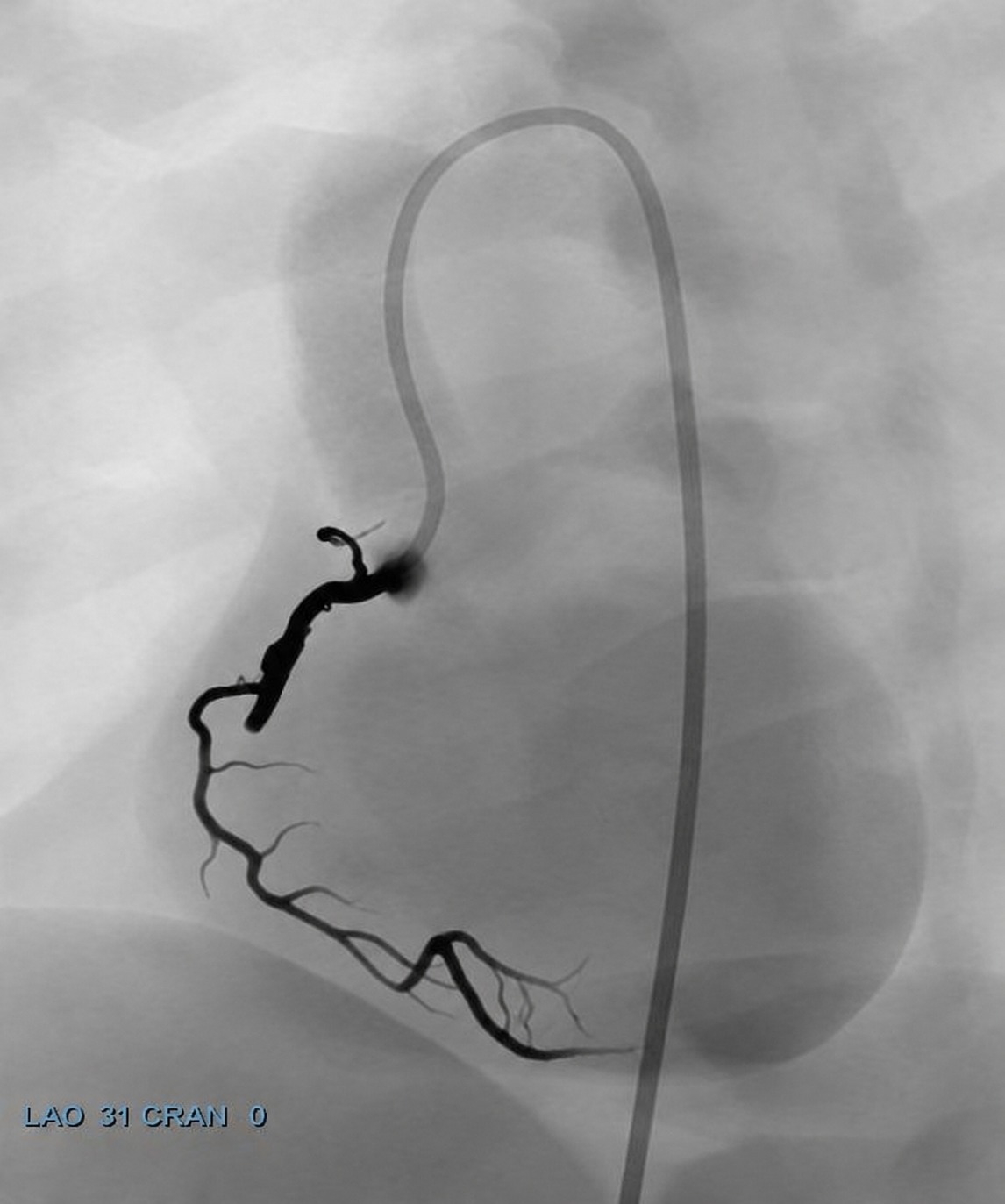

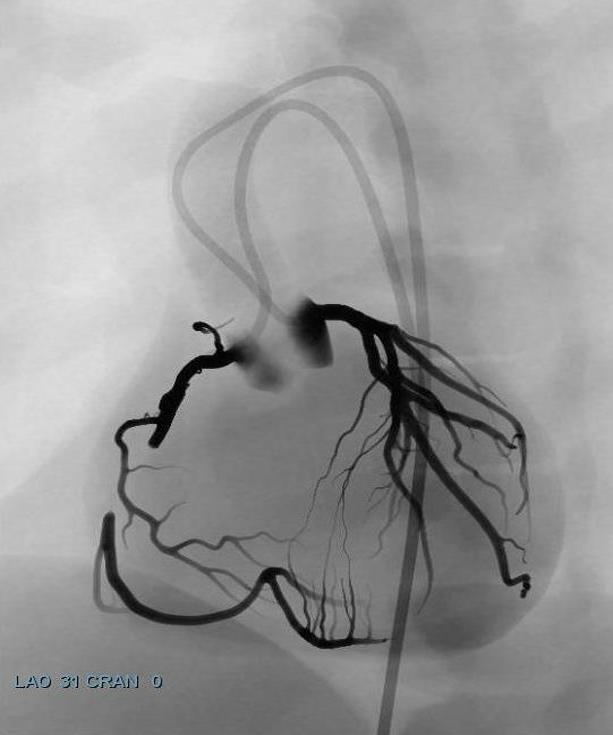

    Unlike a standard angioplasty that uses one catheter, CTO PCI often requires two or even three access points. This means your doctor may place catheters in both wrists, or one in the wrist and one in the groin. The reason is that the blocked artery needs to be seen from both sides simultaneously: one catheter injects dye into the artery before the blockage, while another shows the artery beyond the blockage through collateral vessels (the natural detours your body created).

    This "dual injection" technique is essential for the operator to navigate safely through the blockage.

    Retrograde Approach

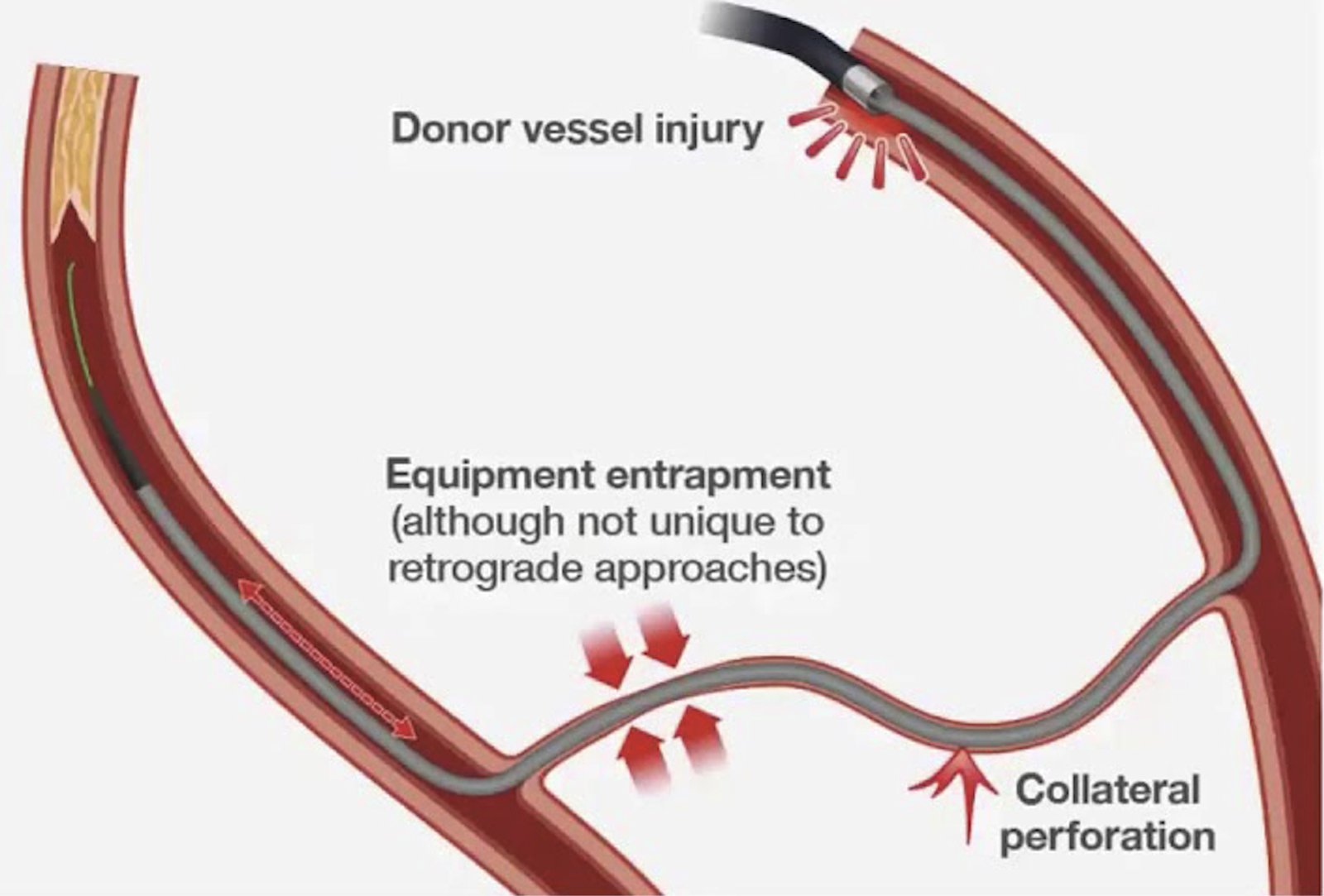

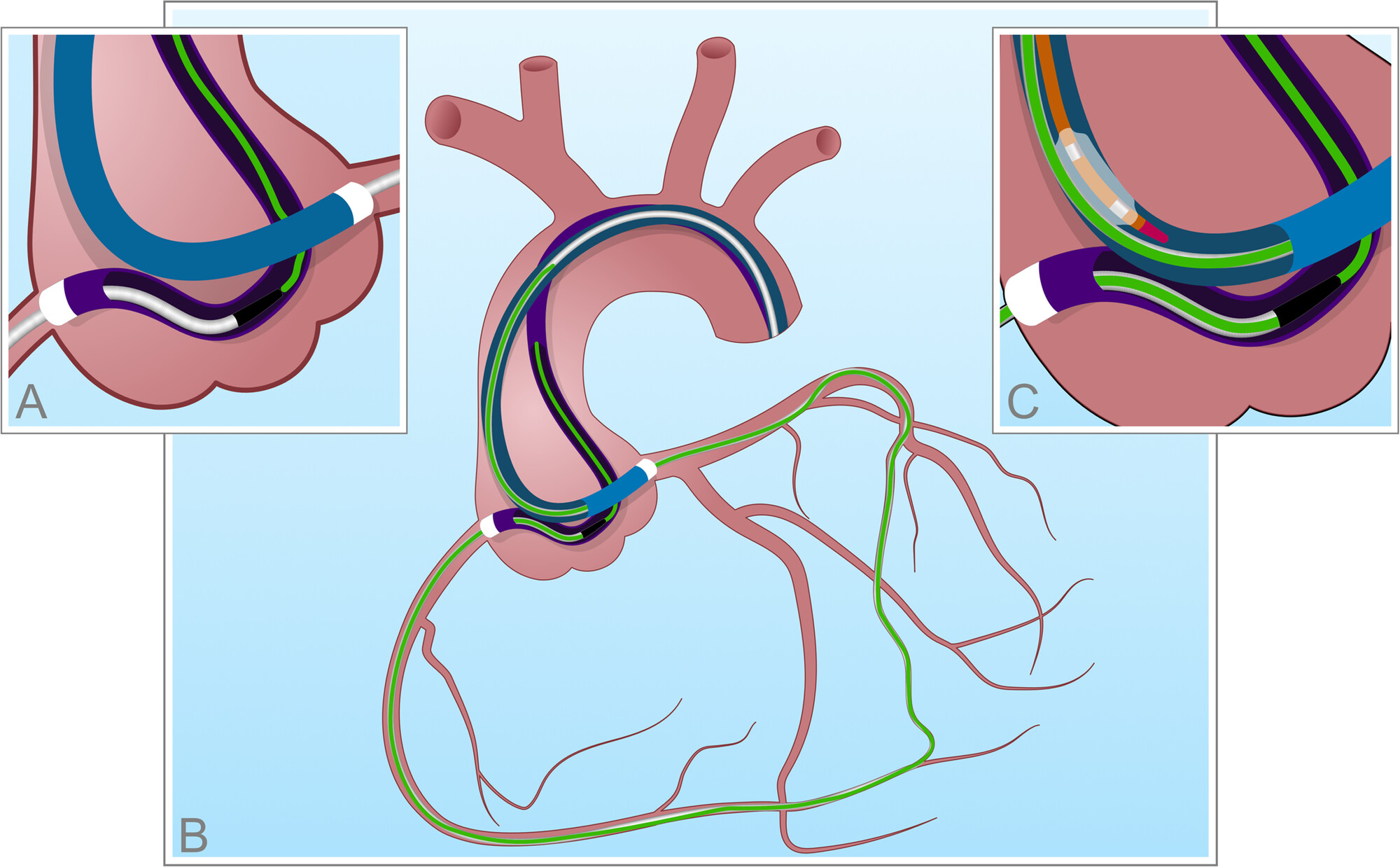

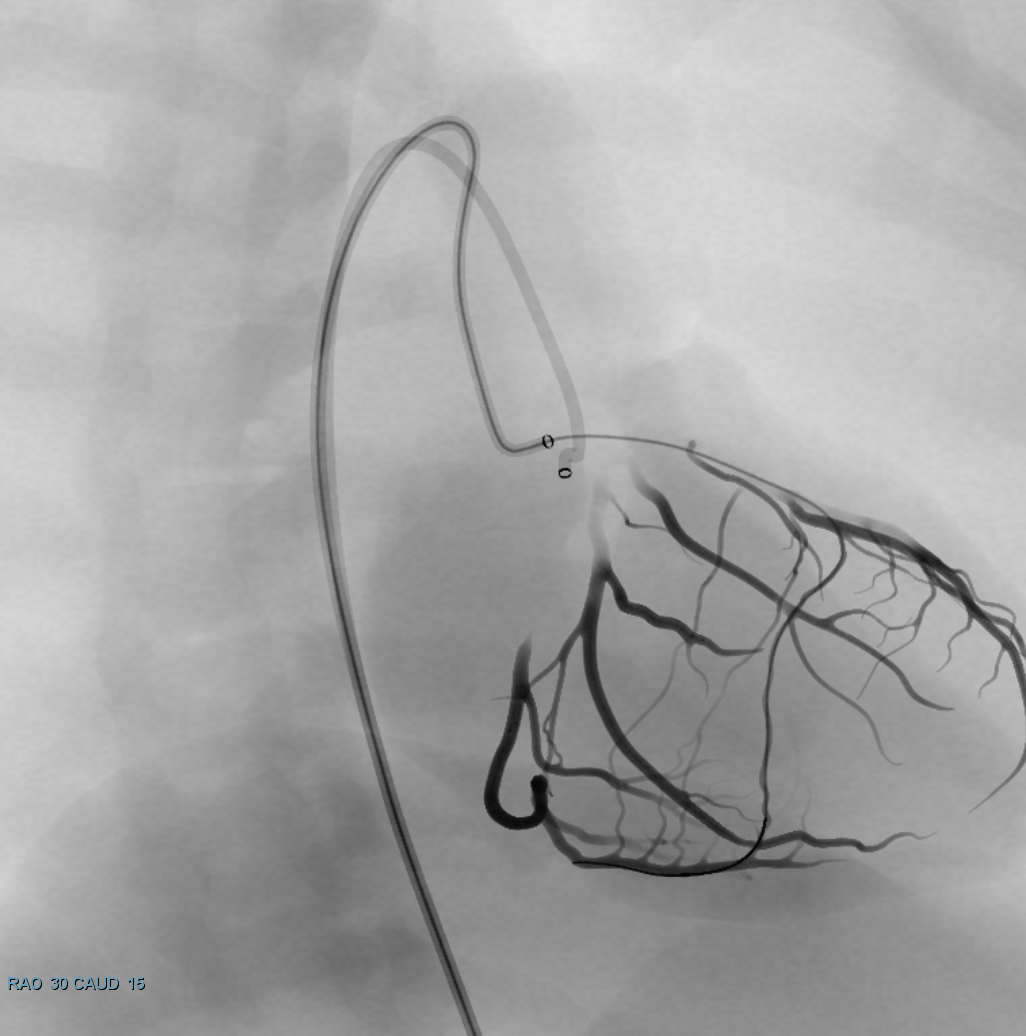

    Sometimes the blockage is too hard or too long to cross from the front (antegrade approach). In these cases, your doctor may use a "retrograde" strategy: instead of pushing through the blockage from the beginning, a tiny wire and microcatheter are threaded through the collateral vessels (natural detour pathways) to reach the blockage from the other side. This advanced technique significantly increases the chances of success in the most challenging cases.

    Complex & High-Risk PCI

    Some patients have disease in multiple arteries, heavily calcified arteries (hardened and stiff), or blockages in the left main artery (which is critical). These are complex cases that require advanced skills and special tools.

    These procedures may use special techniques like atherectomy (a tool that shaves away calcified plaque) or imaging technology (IVUS or OCT, which are like "ultrasound" cameras that let us see exactly what we're treating). These advanced interventions can be an alternative to bypass surgery in many cases.

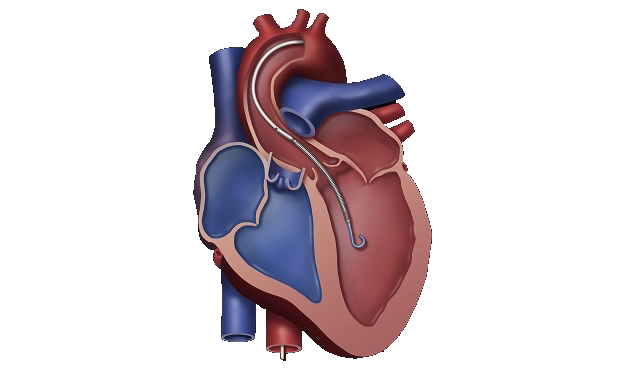

    Complex high-risk indicated PCI — catheter inside the heartCoronary Intervention with Mechanical Circulatory Support (Impella)

    Recovery After CTO PCI

    Most patients stay in the hospital for one night after the procedure. If dual access was used (wrist and groin), you may need to lie flat for a few hours until the groin access site seals.

    First Week

    You can resume light daily activities (walking, light housework) within 1 to 2 days. Avoid heavy lifting (more than 10 pounds) and intense exercise for about one week. Keep the access sites clean and dry. Some bruising at the wrist or groin is normal.

    Medications

    You will be prescribed dual antiplatelet therapy (typically aspirin plus a second blood thinner such as clopidogrel, prasugrel, or ticagrelor). It is critical that you take these medications exactly as prescribed. Stopping them too early can cause the new stent to clot, which is a medical emergency. Most patients take dual therapy for at least 12 months.

    Follow-Up

    You will typically see your cardiologist 2 to 4 weeks after the procedure, then again at 3, 6, and 12 months. A stress test may be performed at 6 to 12 months to confirm that blood flow remains good.

    Long-Term Outlook

    Many patients notice improvement in their symptoms within days. Studies show that successful CTO PCI improves quality of life, reduces angina, and may improve long-term survival. The key to lasting results is taking your medications, managing risk factors (blood pressure, cholesterol, diabetes, smoking), and staying physically active.

    How Dr. Martins Filho Can Help

    Dr. Evandro Martins Filho is an interventional cardiologist with specialized fellowship training in CTO PCI. He performs over 600 PCI procedures each year and is recognized as a CTO specialist.

    Whether you've been told your condition can't be treated, or you want a second opinion, Dr. Martins Filho can help evaluate your options.

    To schedule a consultation: Have your doctor refer you, or contact us through the main website with your recent angiography films.

    Contact Us

    CTO PCI: Indications, Techniques, and Outcomes

    Evidence and Outcomes

    The EURO-CTO trial demonstrated high success rates (>85%) with modern hybrid algorithms in experienced centers, with favorable long-term outcomes including symptom relief and reduced medication burden. The DECISION-CTO trial showed improved symptoms and exercise capacity following successful CTO PCI. Success rates with current techniques exceed 85% in high-volume centers. Lesion complexity assessment using the J-CTO score and PROGRESS-CTO score helps predict success and risk stratification.

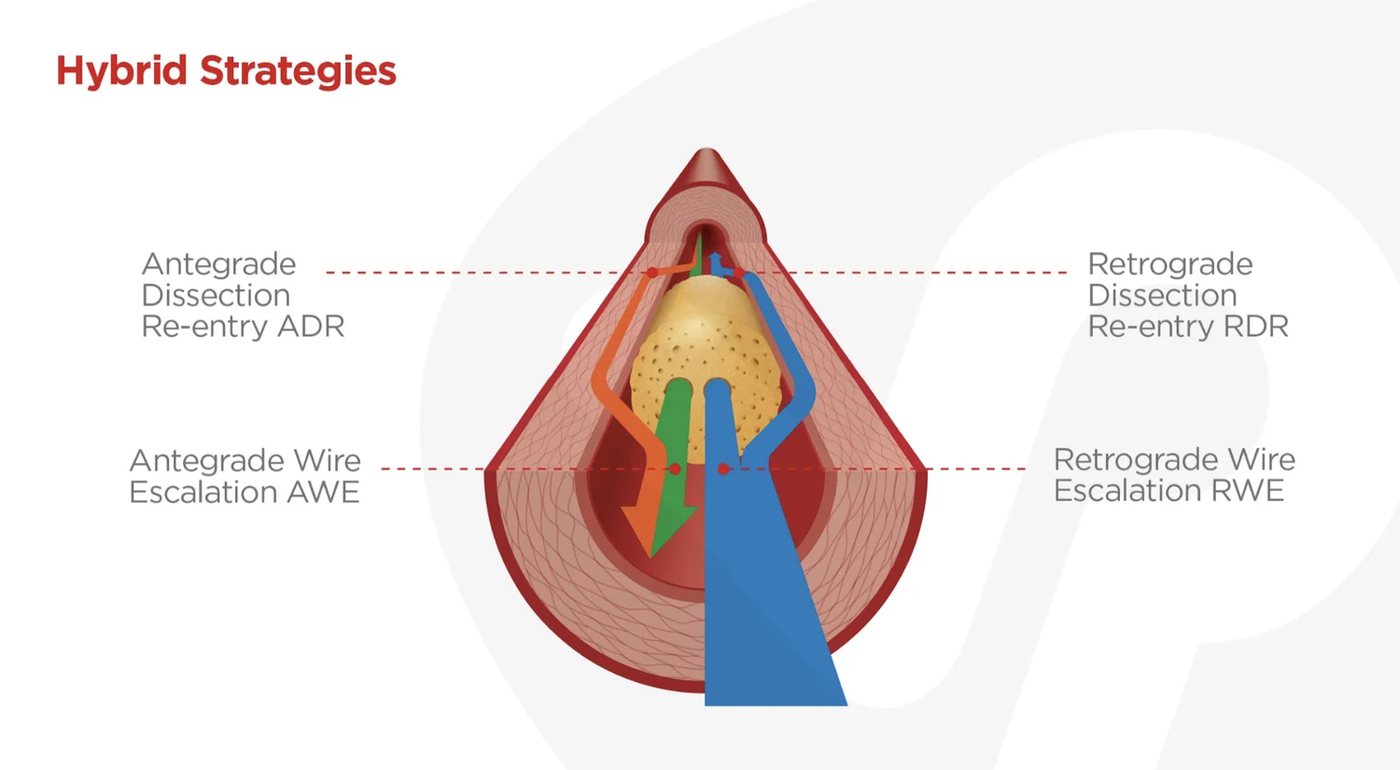

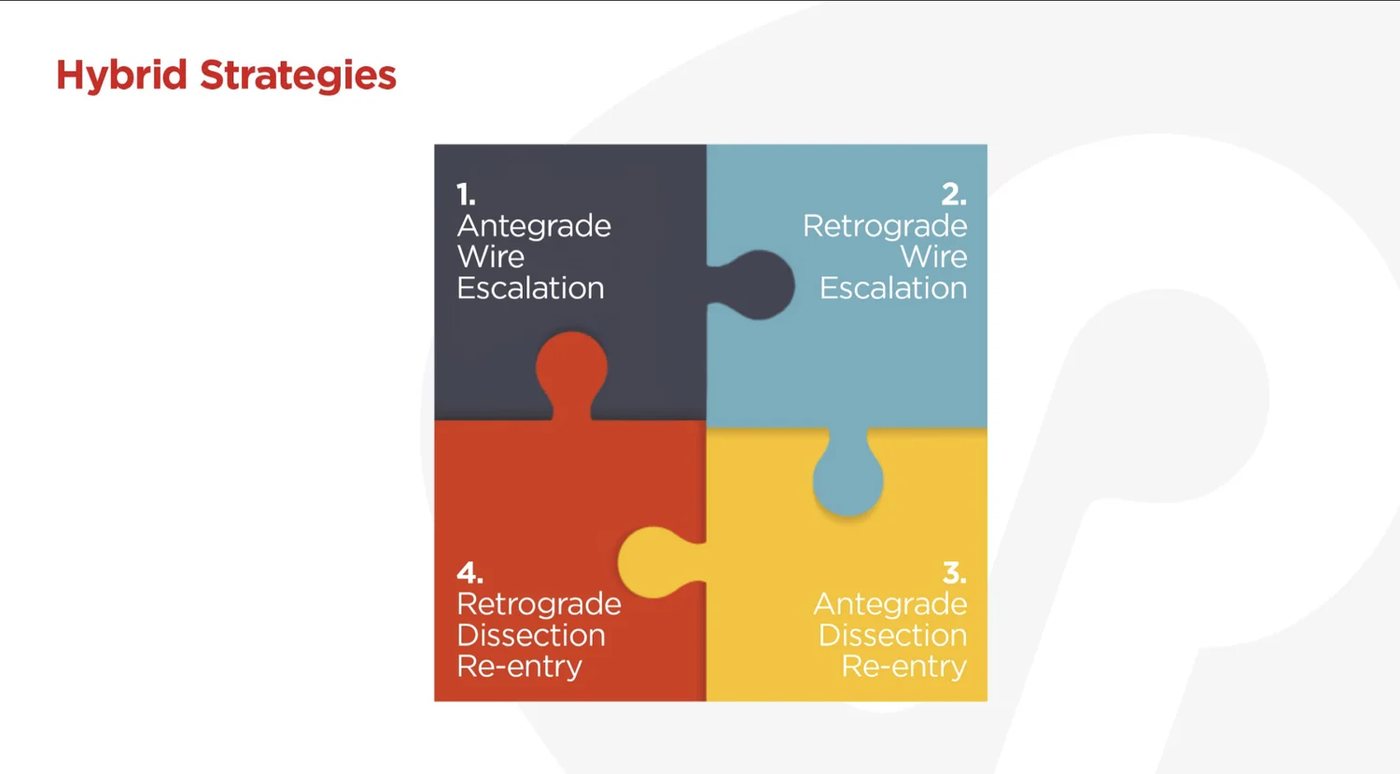

    Hybrid Algorithm Approach

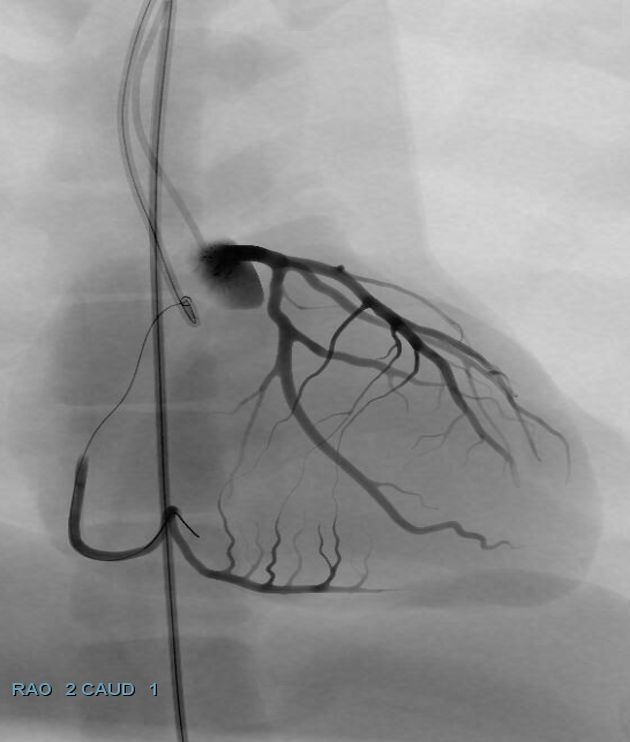

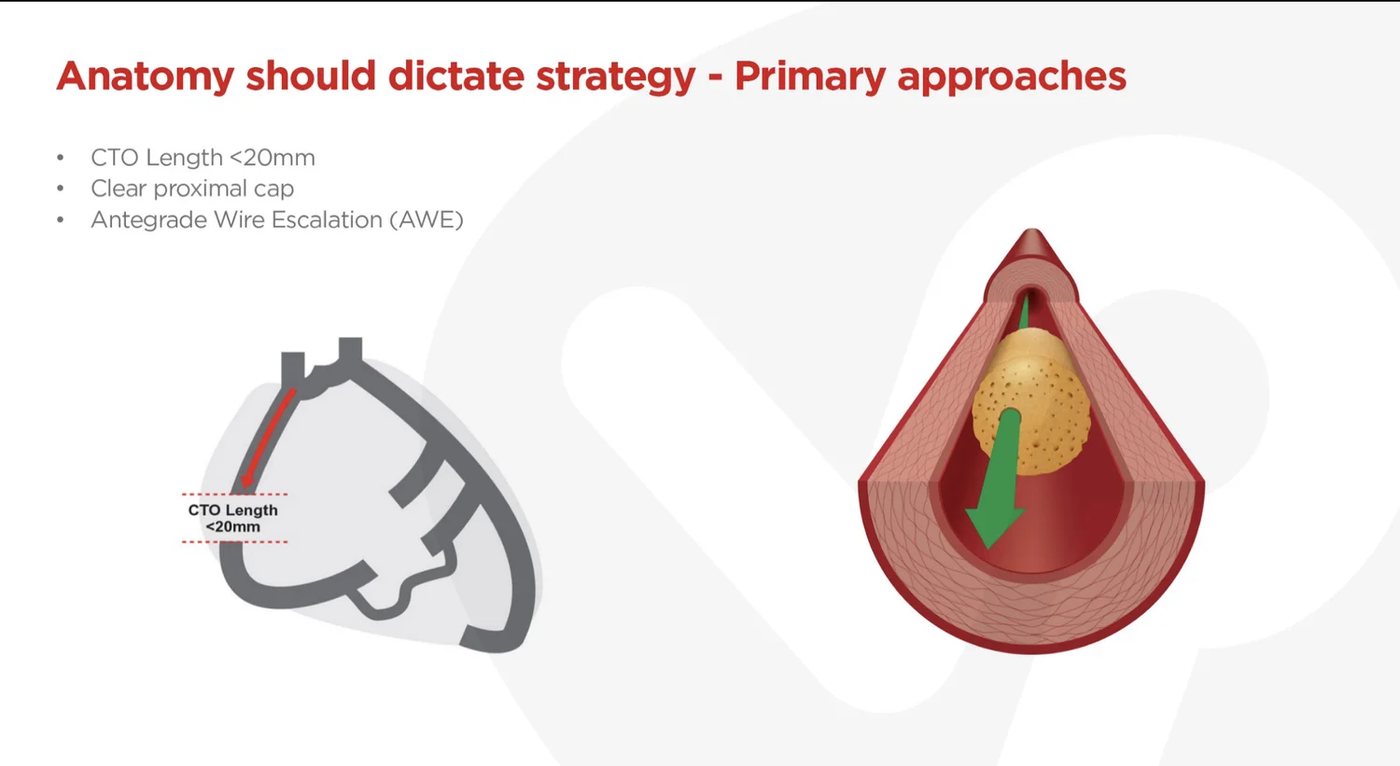

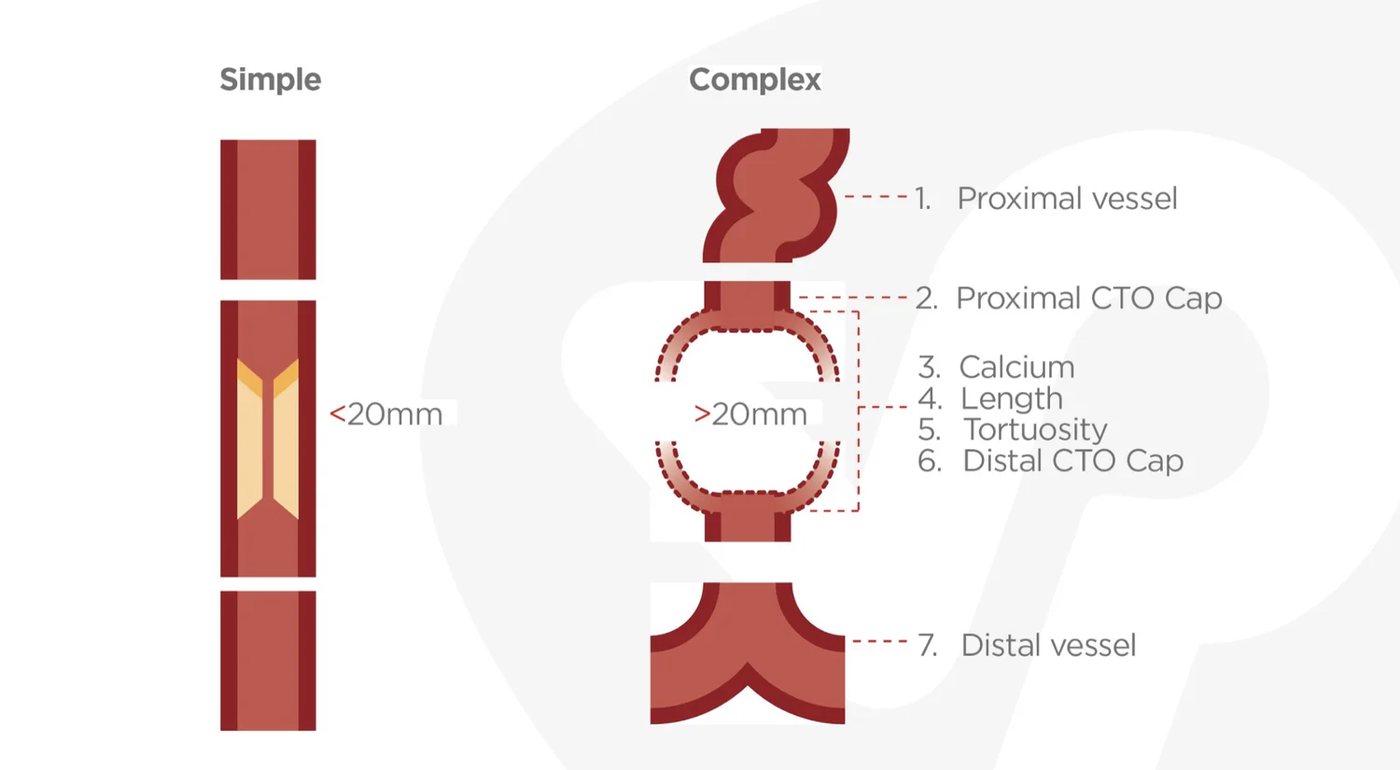

    Antegrade Wire Escalation (AWE): Sequential escalation of wire stiffness and support to cross lesions. Optimized for lesions with moderate complexity and calcification.

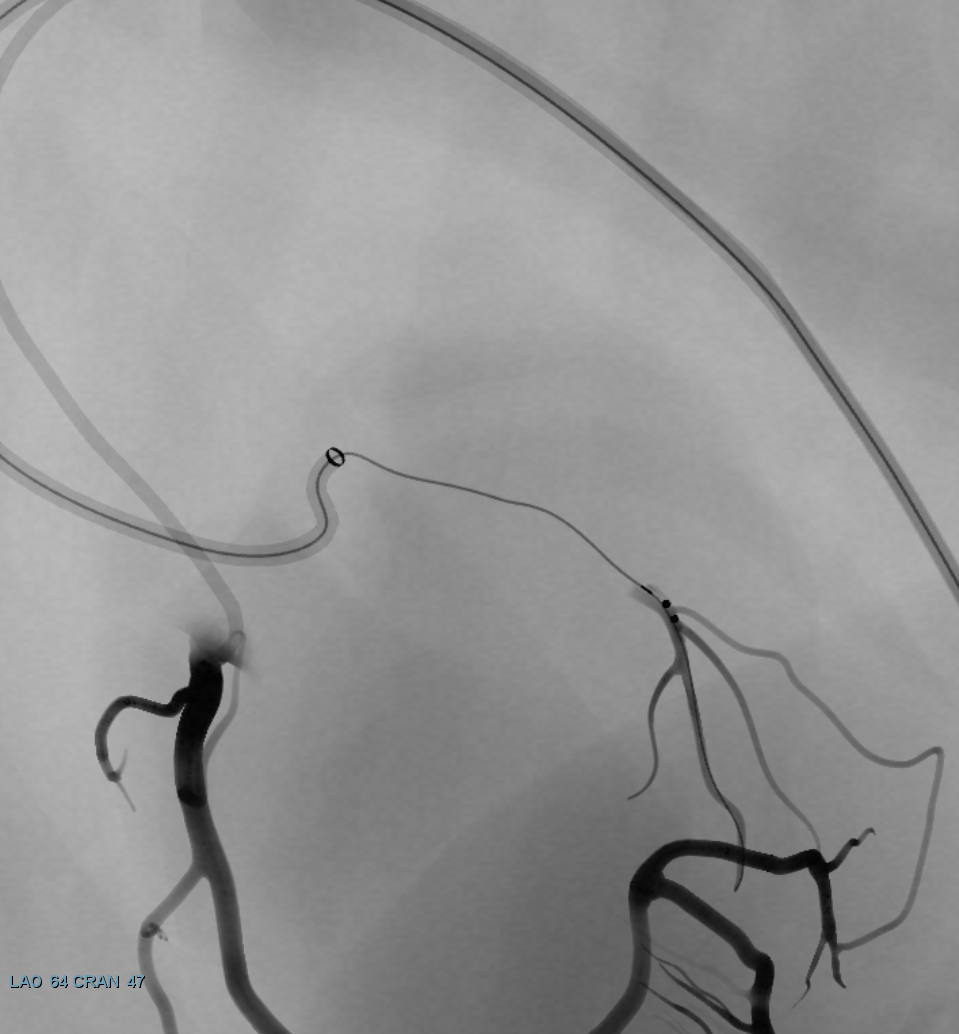

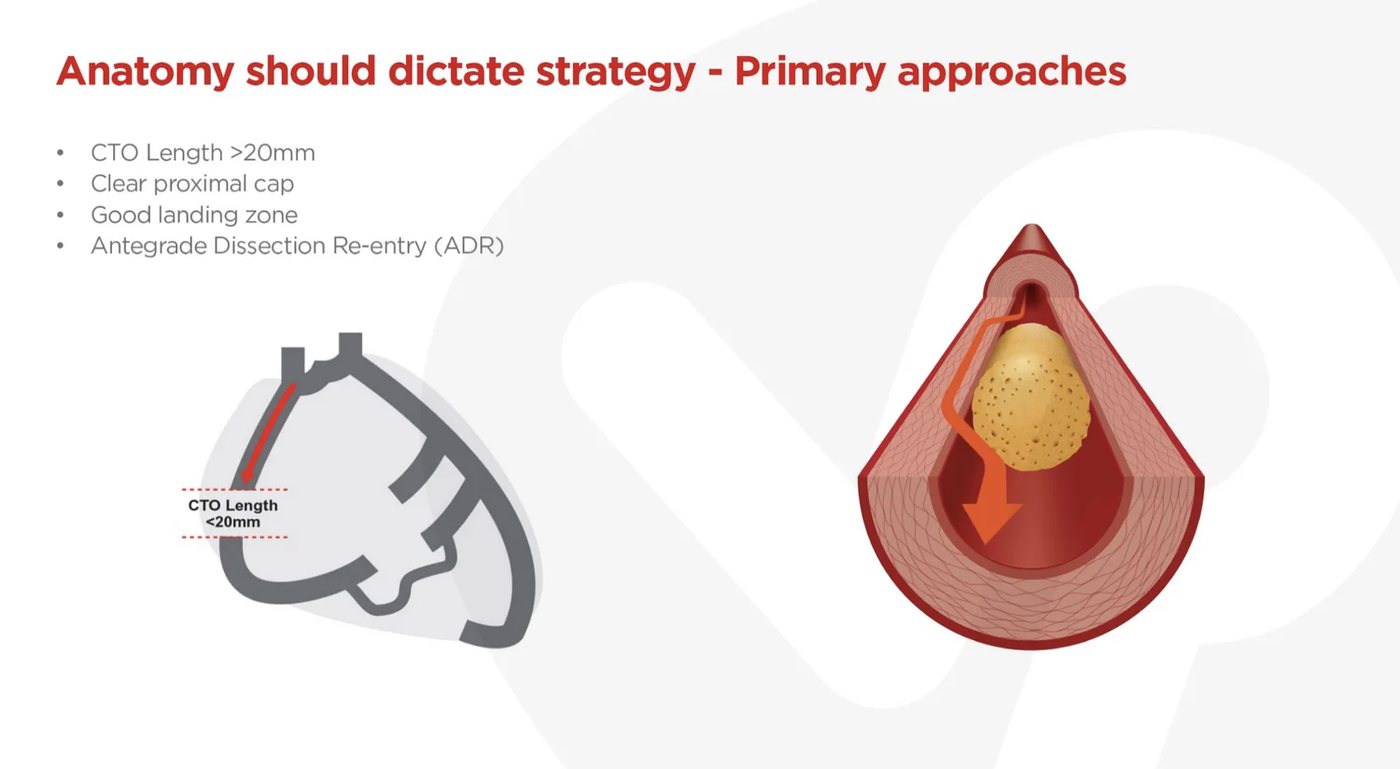

    Antegrade Dissection Re-entry (ADR): Intentional wire or microcatheter dissection creating a subintimal space proximal to the occlusion, with re-entry distal to it. Effective for calcified, ambiguous, or tortuous lesions.

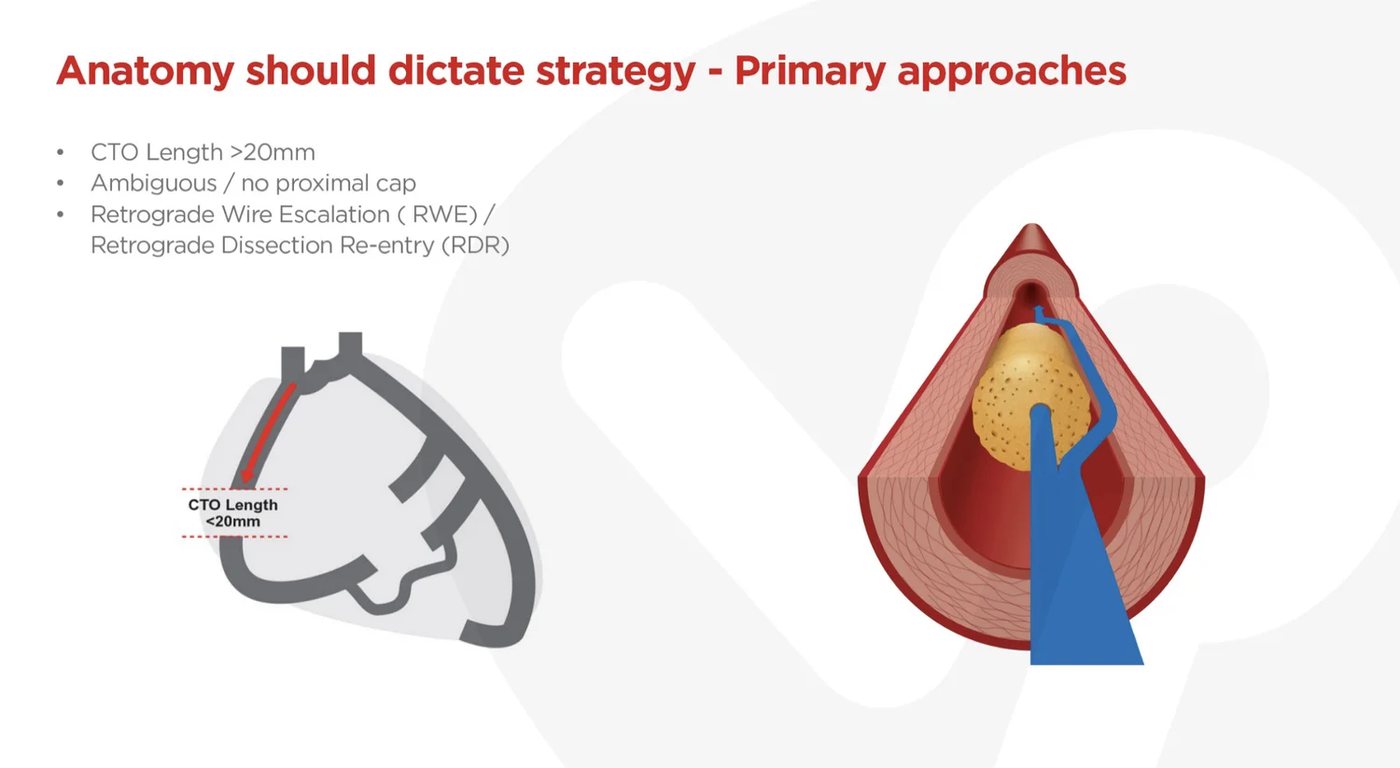

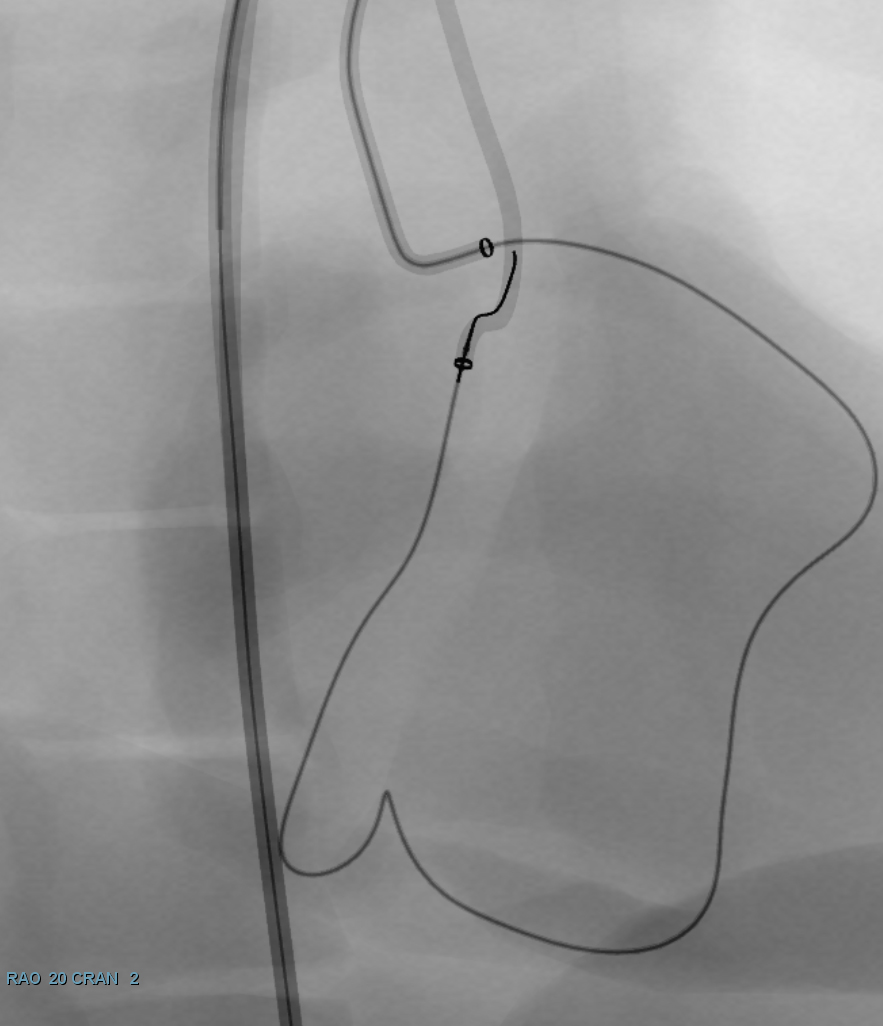

    Retrograde Approach: Via collateral vessels, particularly useful when anterograde approaches fail. Requires collateral assessment and specialized techniques. Modern retrograde techniques have expanded the population of recanalizable CTOs significantly.

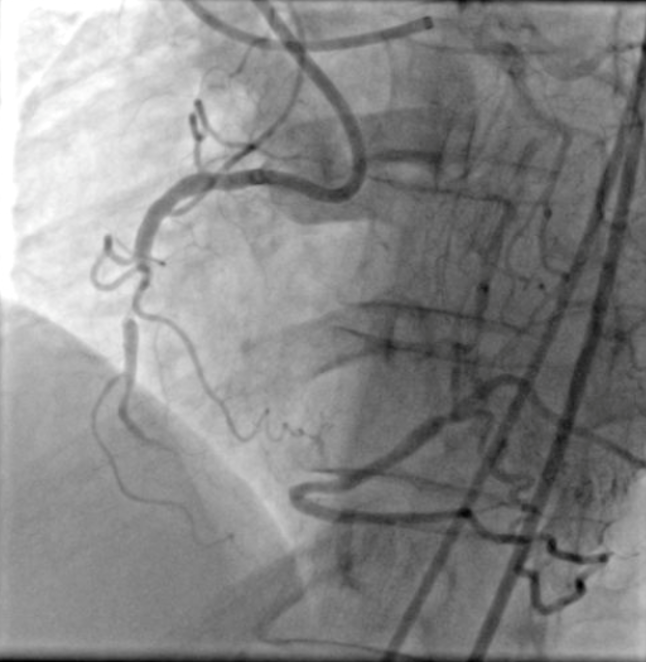

    RCA CTO before PCI — complete occlusionBefore: Complete Occlusion

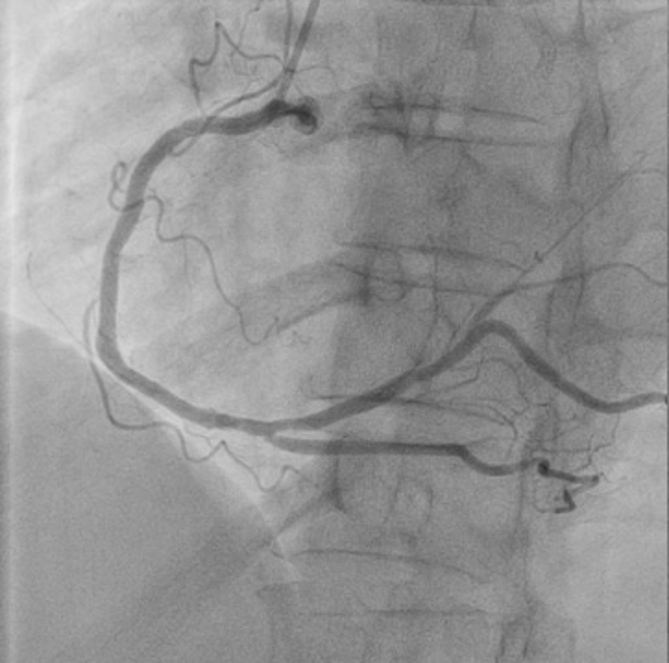

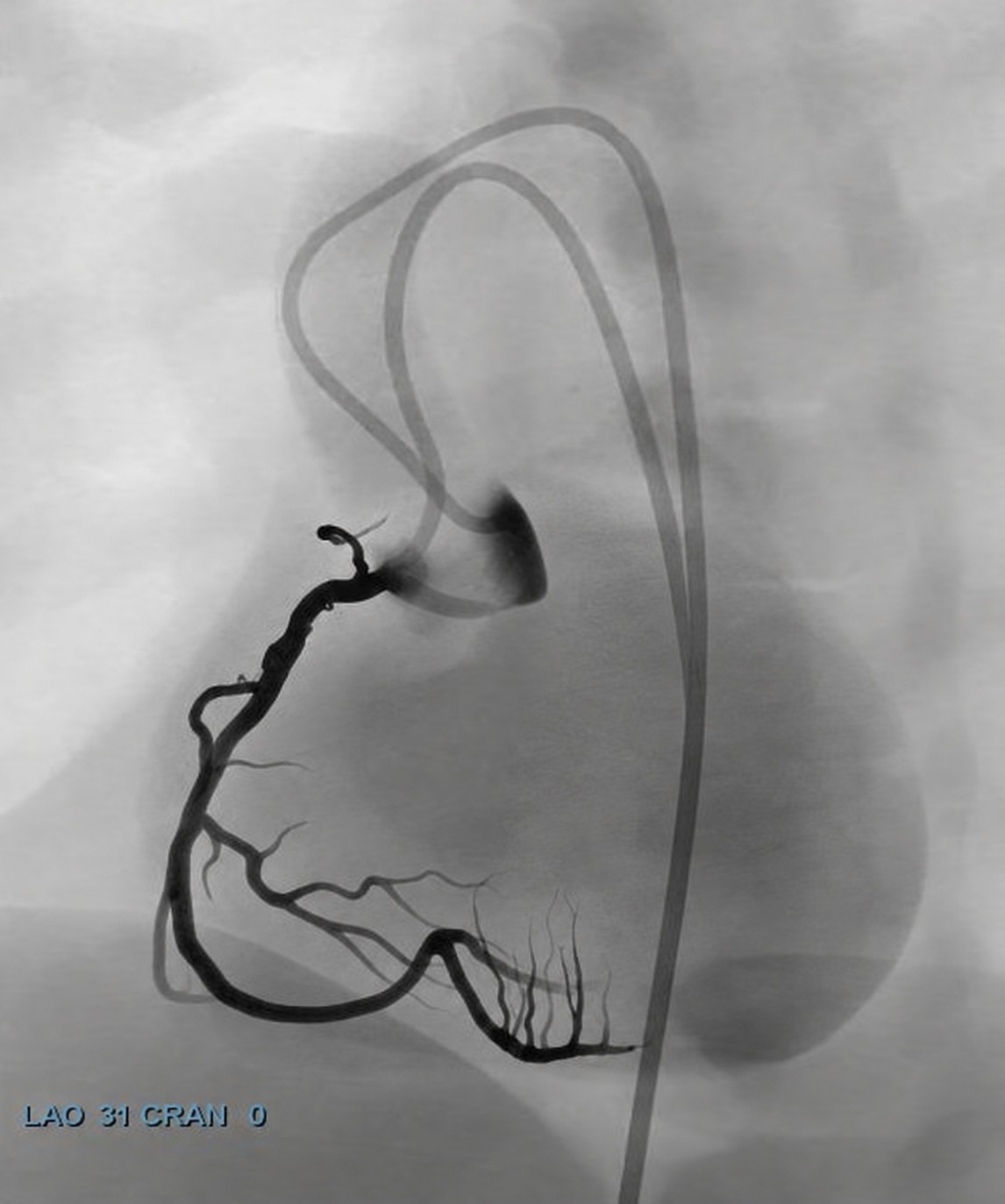

    RCA CTO after PCI — restored flowAfter: Flow Restored

    Complex and High-Risk PCI

    Left Main PCI

    The EXCEL and NOBLE trials established non-inferiority of ICP versus CABG for left main disease in appropriate candidates. Left main PCI requires meticulous lesion assessment, staged procedures when necessary, and consideration of hemodynamic support for high-risk anatomy. Provisional single-stent strategy is preferred when feasible.

    Bifurcation Management

    Contemporary bifurcation strategies emphasize provisional stenting with main branch optimization. Two-stent techniques (culotte, crush, DK-crush) reserved for cases with large, diseased side branches. The IVUS-guided provisional approach reduces restenosis compared to routine two-stent strategies.

    Calcified Lesion Treatment

    Severely calcified lesions present unique challenges. Techniques include: Intravascular Lithotripsy (IVL) for sonic pulse energy disruption of calcium; Rotational Atherectomy for elliptical debulking; Orbital Atherectomy with flexible shaft technology; and Laser Angioplasty for fibrocalcific plaque.

    Hemodynamic Support

    High-risk PCI increasingly incorporates mechanical circulatory support. Impella devices provide up to 5.0L/min support with active unloading. ECMO offers higher flow for cardiogenic shock scenarios. Careful patient selection, timing, and post-procedure weaning protocols optimize outcomes.

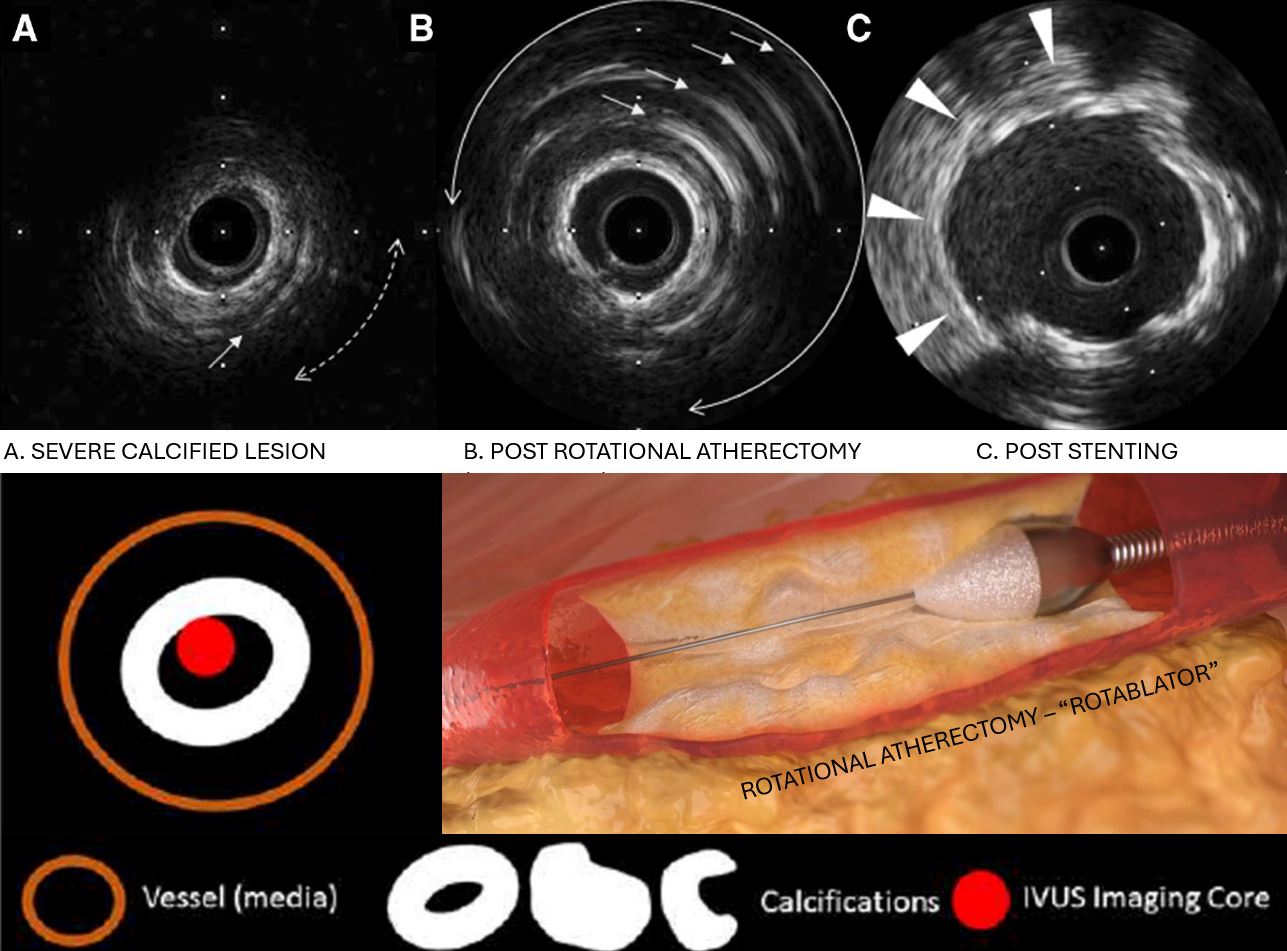

    Rotational atherectomy with IVUS guidance for calcified lesionRotational Atherectomy with IVUS-Guided Optimization

    Intravascular Imaging Guidance

    IVUS vs. OCT: Clinical Applications

    IVUS: Superior for assessment of vessel size and plaque burden. Penetration depth (~4-5mm) allows interrogation of vessel walls. Excellent for calcification evaluation and chronic occlusion assessment.

    OCT: Resolution (~10-15 microns vs. 150 for IVUS) enables detection of thin-cap fibroatheromas and subtle stent malapposition. Superior for edge dissection and tissue prolapse assessment. Limited penetration (~2mm) in calcified vessels.

    Optimization Endpoints

    IVUS-guided optimization targets minimal stent area (MSA) >80% of distal reference vessel, complete lesion coverage, and expansion ratio >80%. OCT optimization focuses on mean stent area (typically >5.5mm² for left main), coverage of all side branches, and absence of edge dissection >200 microns or malapposition >200 microns.

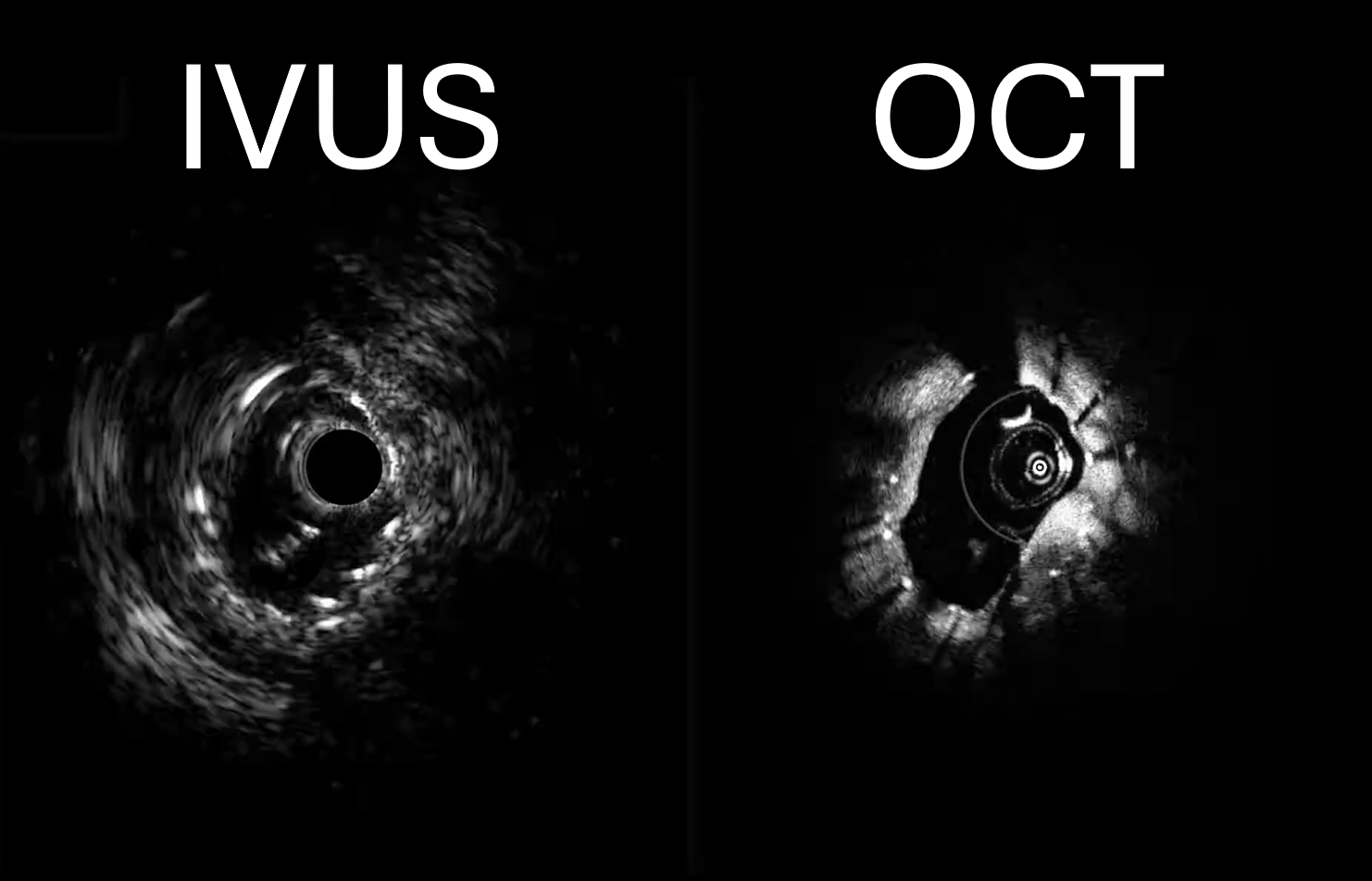

    Co-registered IVUS and OCT imaging - Example 1IVUS + OCT (Co-registration 1)

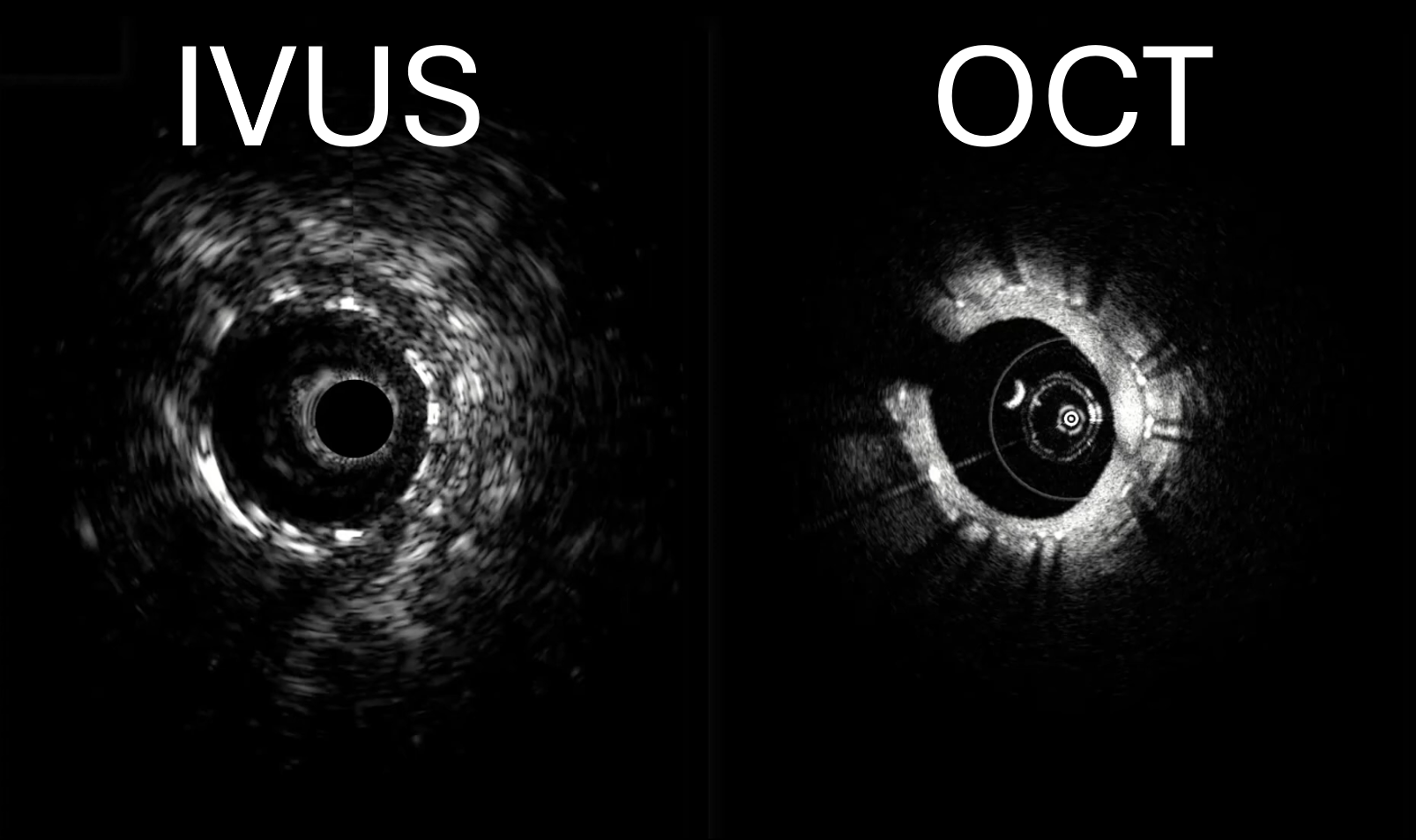

    Co-registered IVUS and OCT imaging - Example 2IVUS + OCT (Co-registration 2)

    Referring a Patient

    We welcome referrals for patients with chronic total occlusions, complex multivessel disease, left main interventions, heavily calcified lesions, and refractory angina unsuitable for medical management alone.

    What to Send

    Contact Information

    Referrals can be submitted through our main website contact page or directly through electronic health systems if integrated. For urgent consultations or complex cases, please call directly. We typically schedule consultations within 1-2 weeks. A multidisciplinary heart team discussion is encouraged for complex anatomy.
